Bath Wastes & Trim KitsIllustrations
Part Number Description
101-101 1-1/2" Brass body , Uni-Lift Plug and Seat
101-201 1-1/4" Brass body , Uni-Lift Plug and Seat
101-202 1-1/4" Brass body , Uni-Lift Plug and Seat,
1-1/4" & 1 1/2" BRASS BUSHING
101-203 1-1/4" Brass body , Uni-Lift Plug and Seat,
1-1/4" & 1 1/2" PLASTIC BUSHING
Part Number Description
102-101 1-1/2" BRASS TIP TOE
102-201 1-1/4" BRASS TIP TOE
102-202 1-1/4" BRASS TIP TOE,1-1/4" & 1 1/2" BRASS BUSHING
  1-1/4" BRASS TIP TOE,1-1/4" & 1 1/2" PLASTIC BUSHING
Part Number Description
103-101 1-1/2" Brass body ,Stainless steel screw and cover
103-201 1-1/4" Brass body ,Stainless steel screw and cover
103-202 1-1/4" Brass body and brass bushing ,Stainless steel screw and cover
103-203 1-1/4" Brass body and plastic bushing ,Stainless steel screw and cover
Part Number Description
108-201 1-1/4" Brass body ,Stainless steel screw and cover
Part Number Description
104-101 1-1/2" Brass body ,Lift and turn style
Part Number Description
106-101 1-1/2" Brass body ,Push button style
106-201 1-1/4" Brass body ,Push button style
106-202 1-1/4" Brass body ,Push button style,1-1/4" & 1 1/2" BRASS BUSHING
106-203 1-1/4" Brass body ,Push button style,1-1/4" & 1 1/2" PLASTIC BUSHING
Part Number Description
107-201 Junior Duo Bar Sink Strainer, Stainless Steel Body and Basket. Length 1-1/8"
Part Number Description
1B01-101 Brass Faceplate, One Hole, w/Screws
1B01-201 Zine Faceplate, One Hole, w/Screws
Part Number Description
1B02-101 Brass Faceplate, Two Hole,w/Screws
1B02-201 Zine Faceplate, Two Hole,w/Screws
Part Number Description
1B03-101 Brass Faceplate, Trip Lever, w/Screws
1B03-201 Zine Faceplate, Trip Lever, w/Screws

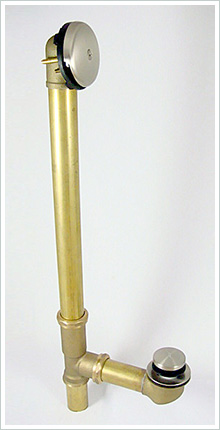

100-101
Brass Bath Wastes

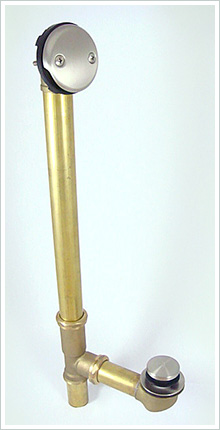

100-201
Brass Bath Wastes
100-301
Brass Bath Wastes
